. High-definition touch screen control
The saw car is driven by rack and pinion, which is smooth and reliable;
The main saw adopts synchronous belt drive, greatly reducing the loss of motor horsepower;
The clamping mechanism uses double clamping jaw manipulator, which has stable structure, can avoid panel scratches, and can cut batch narrow strips at the same time.
|

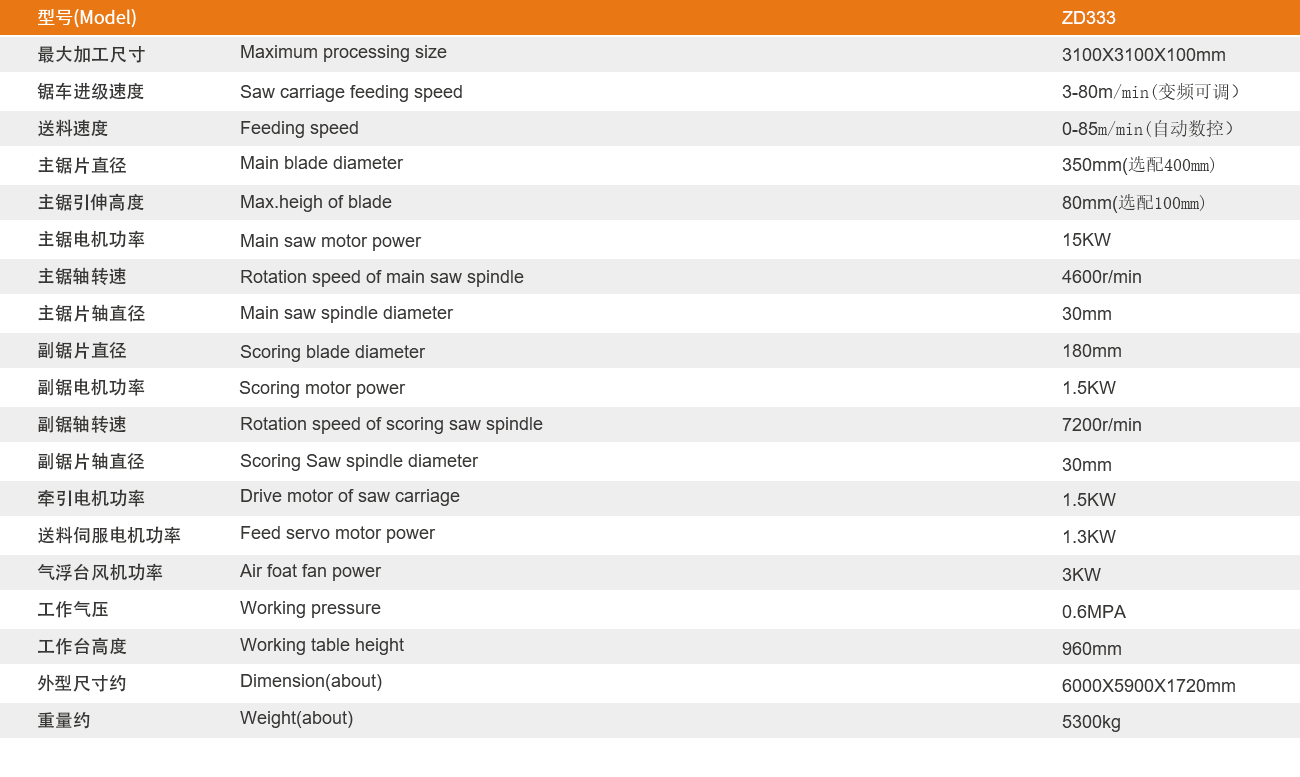

Name |
computer numerical control panel saw |
Auxiliary saw blade diameter |
Φ180mm |
|
|
Model |
ZD333 |
Auxiliary saw motor power |
1.5KW |
|
|
Maximum processing size |
3200X3200mm |
Auxiliary saw shaft speed |
7200r/min |
|
|
Step-in speed of saw car |
3-80m/min(Variable frequency adjustable) |
Auxiliary saw blade shaft diameter |
Φ30mm |
|
|
Feeding speed |
0-85m/min(automatic numerical control) |
Traction motor power |
1.5KW |
|
|
Diameter of main saw blade |
Φ350mm (Optional400mm) |
Feeding servo motor power |
1.5KW |
|
|
Main saw extension height |
80mm(Optional100mm) |
Working air pressure |
0.6MPA |
|
|
Main saw motor power |
15KW |
Table height |
960mm |
|
|
Main saw shaft speed |
4000r/min |
Exterior dimension approx. |
6000X5900X1720mm |
|
|
Main saw blade shaft diameter |
Φ30mm |
Weight approx. |
4800KG |
|
Note: The product is constantly improved, when the shape and parameters change, the actual sample shall prevail.
